DESCRIPTION

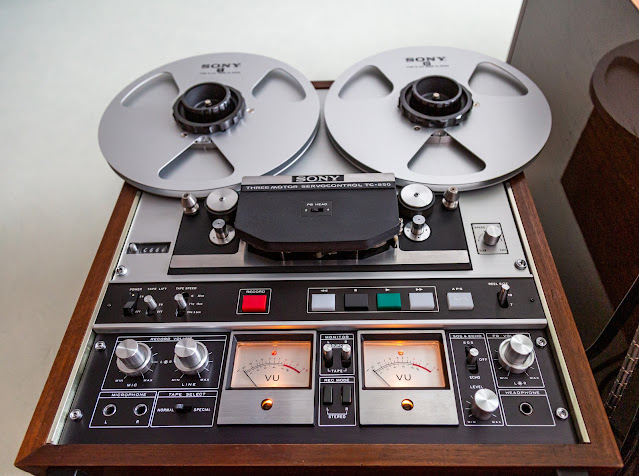

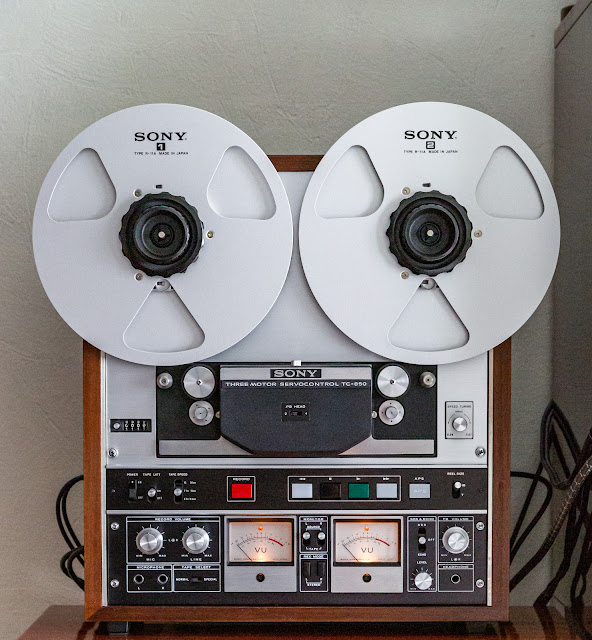

The TC 850 was a semi-professional three-motor, four head tape deck with a 10½ ” reel capacity.
The recorder could record in half-track stereo, but thanks to the extra playback head, quarter-track stereo playback was possible.
All transport controls were servo-controlled, which resulted in a seamless transition between transport modes. The recorder was considered ‘easy to use’ by reviewers.
This was not a cheap machine, in 1974 it cost almost twice as much as a Revox A77 so it is fairly easy to see why not many were sold.

• Number of Transistors
• 77

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo Tape Deck TC-850-2 - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 445 x 501 x 254.5 mm / 17.5 x 19.7 x 10 inch

• Notes

• Sony Stereo Tape Deck Model TC-850-2.

  Track system: 2-track, 2-channel, stereo/monaural system

  Heads: 1 x 2T record, 1 x 2/4T playback, 1 x erase

  Motor: 3 motors: 1x capstan, 2x reel

  Reel size: up to 10.5 inch reel

  Tape speeds: 3 Speeds: 3 3⁄4  7 1⁄2  15 ips

  Wow and flutter: 0.03% (15 ips)

  Frequency response: 20Hz to 30kHz (15 ips)

  Signal to Noise Ratio: 59dB

  Input: 70mV (line), 0.2mV (mic)

  Output: 0.775V (line)

  Semiconductors: 77x transistors, 79x diodes

  See also:
  Sony TC-850-4 (4-Track Version)

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)
