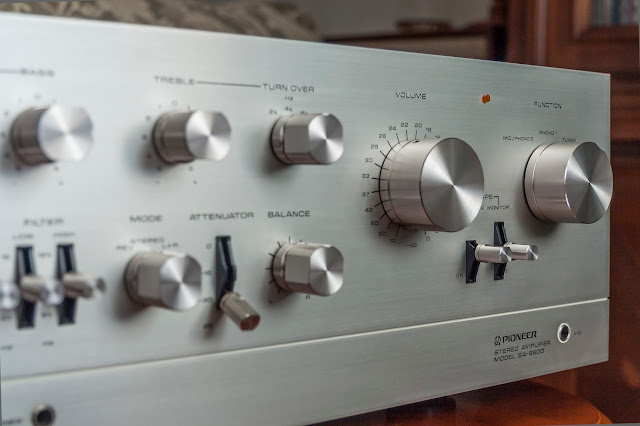

Pioneer SA-9500 Stereo Integrated Amplifier 1975-76

                                 Pioneer SA-9500 Stereo Integrated Amplifier 1976
                                              Information And My Photos








Pioneer believes in music. And if you do, too, you'll find a faithful friend in the new SA-9500; one of the most musically minded pre/main stereo amplifiers we've engineered.
It combines massive stereo output power with a delicacy of transparency; a rare blend in these days of lots of power at any cost.
In other words, we haven't simply beefed up the power section at the expense of the tonal quality, frequency response or other aspects so important to the sound of a high fidelity component.
The Pioneer SA-9500 does deliver an unusually large continuous power output of 80 watts per channel, min RMS at 8 ohms from 20 Hertz to 20,000 Hertz with no more than 0.1% total harmonic distortion, but it also ensures that even when operated at low volumes the performance retains a crisp, sparkling clarity.
The dynamic response and reliability of the SA-9500 are matched with a flexibility of use you'll rarely find in this price range. Tone control versatility, for instance: both the bass and treble sections have 3-position turnover selection and there's a tone on/off switch for "flat" response at a touch.
The 2-step high and low filters, the extra convenient tape duplicating switching system, multiple input source selection, 2-system speaker switching and much more mean first-class handling.
We believe in music. And we're sure that if you do, too, you'll believe in the all-new SA-9500.

Specifications

  • Power output: 80 watts per channel into 8Ω (stereo)
    Frequency response: 7Hz to 40kHz
    Total harmonic distortion: 0.005%
    Damping factor: 30
    Input sensitivity: 6mV (mic), 2.5mV (MM), 150mV (line)
    Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
    Output: 150mV (line), 2V (Pre out)
    Semiconductors: 2 x FET, 54 x transistors, 26 x diodes
    Dimensions: 420 x 165 x 403mm
    Weight: 17.2kg
    Accessories: connecting cord, hex wrench, jack covers
    Year: 1976
  • "Made around 1975 - should still be running in 2035."  :)
