Friday 5 February 2016

SONY TC-U5 Hi-Fi STEREO CASSETTE DECK (1978-79)

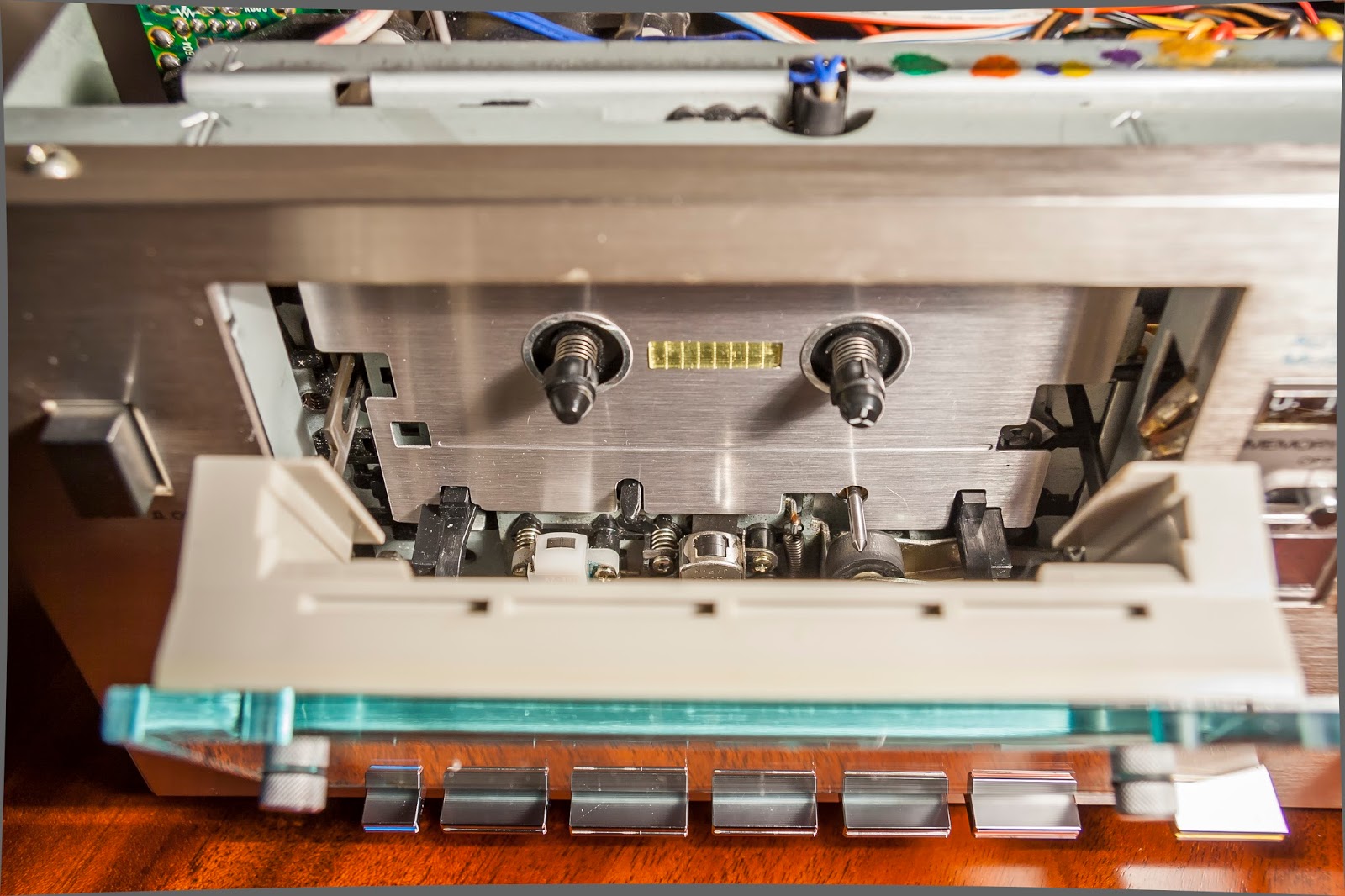

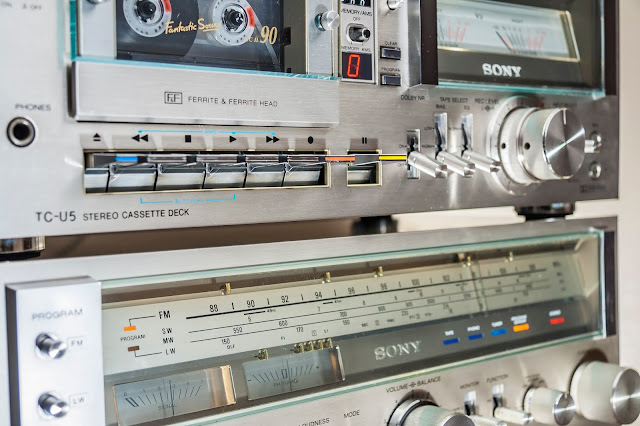

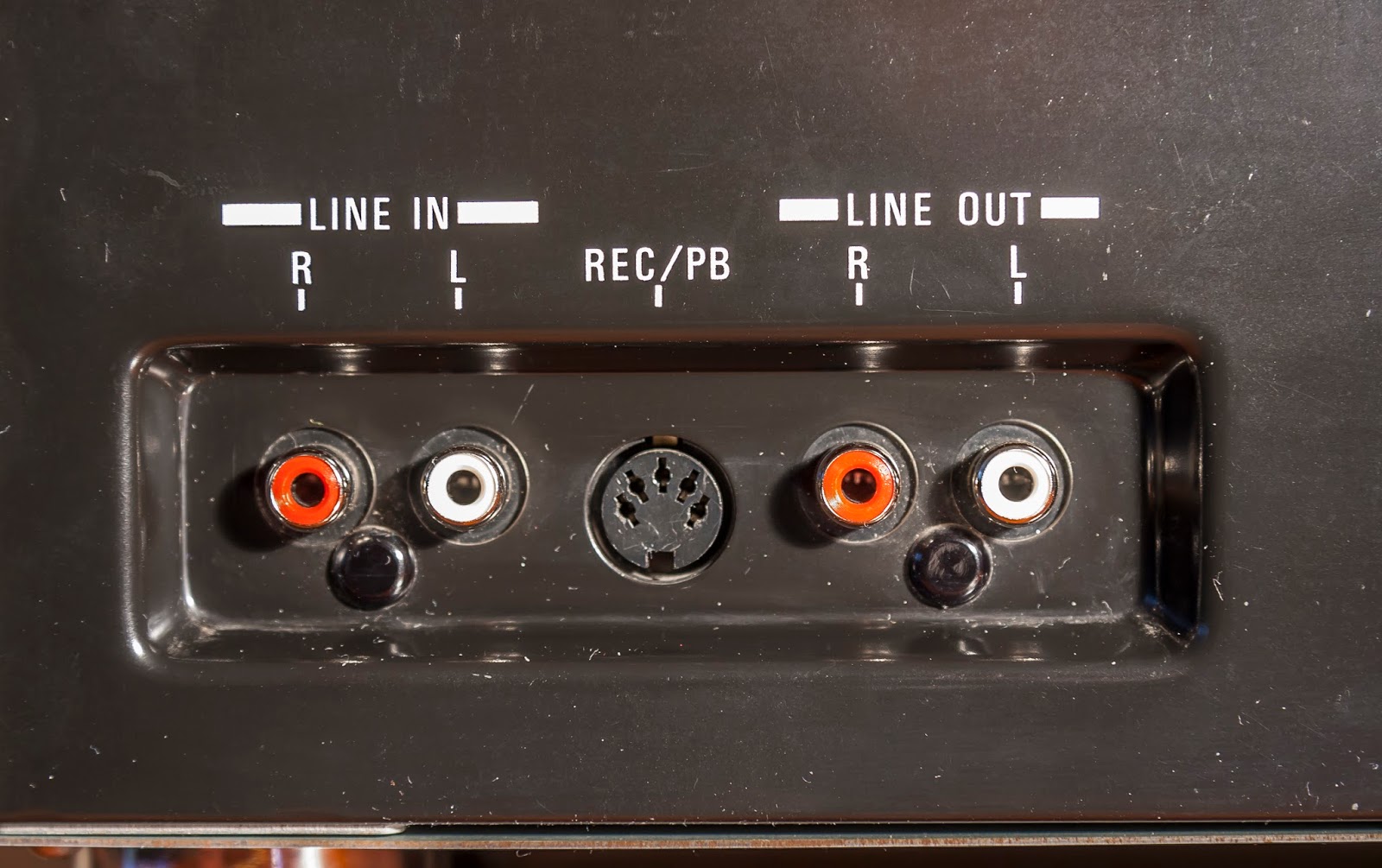

                    SONY TC-U5 Hi-Fi STEREO CASSETTE DECK




Specifications

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, Cr02, FeCr
Noise Reduction: B
Frequency Response: 20Hz to 17kHz  (Cr02 tape)
Signal to Noise Ratio: 68dB  (dolby B)
Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.3%
Input: 77.5mV (line), 0.25mV (mic)
Output: 0.44V (line)
Dimensions: 410 x 145 x 260mm
Weight: 6kg
Year: 1978


































Sony STR-414L AM/FM Program Receiver (1978-79)

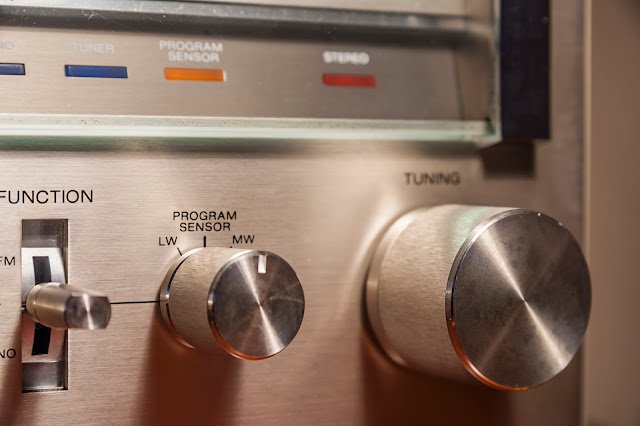

                           Sony STR-414L AM/FM Program Receiver (1978-79)


Specifications

Tuning range: FM, MW, LW, SW
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.3%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 80dB (MM), 95dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 410 x 145 x 375mm
Weight: 9.1kg
